GE IS200BPVCG1BR1 Backplane Interface Board for Mark VI Turbine Control

The GE IS200BPVCG1BR1 is a backplane board in the Mark VI Speedtronic turbine control system, a key upgrade from the Mark V series with added wind turbine compatibility alongside gas and steam applications. Designed for rack-based systems, it serves as a connectivity hub, facilitating data transfer between multiple boards in turbine control setups.

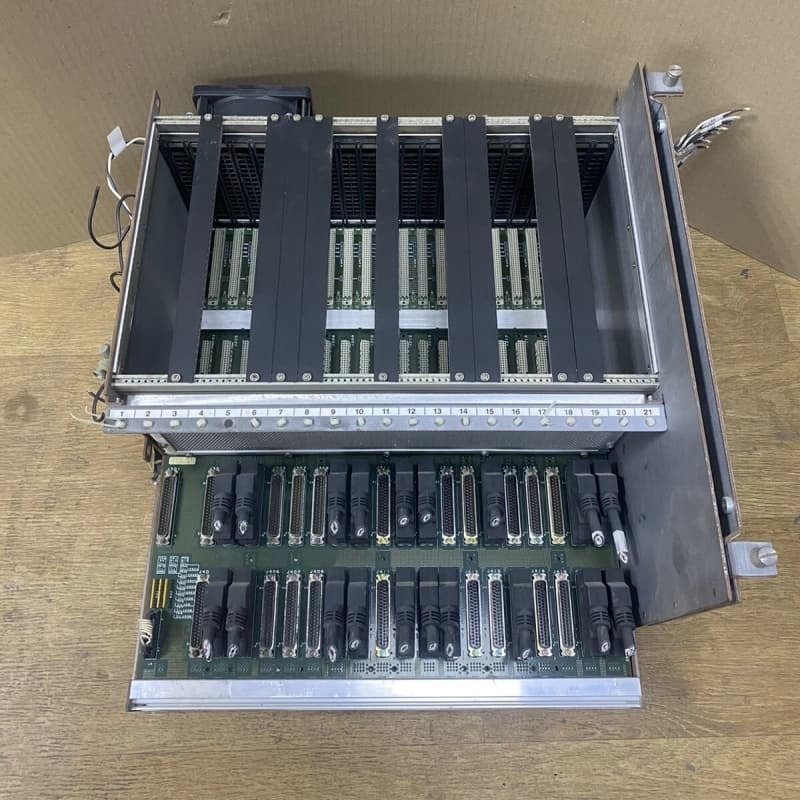

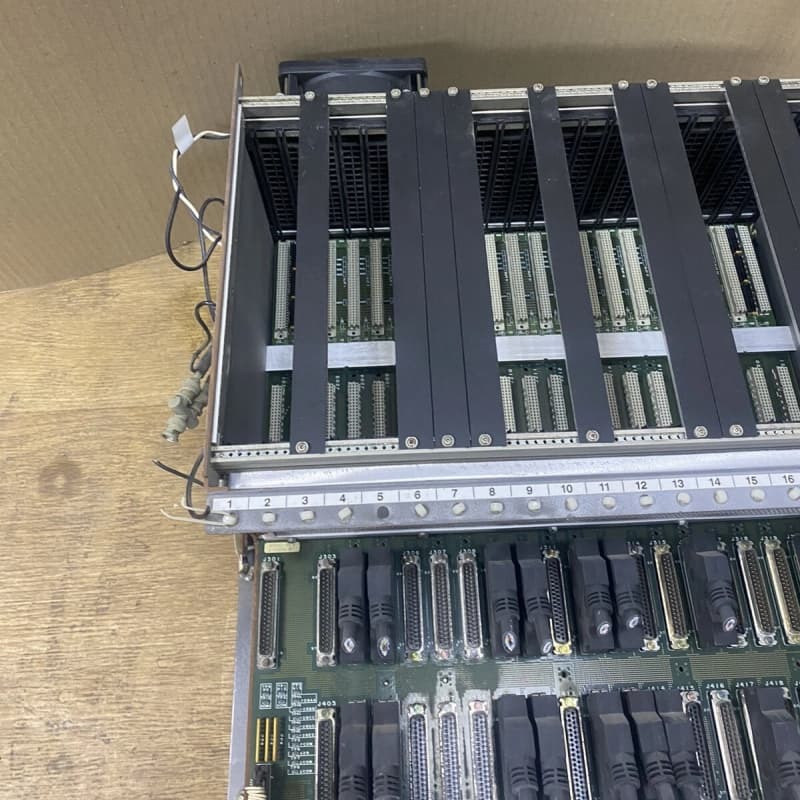

Featuring 21 female backplane connectors on its rear secured by rack walls and 39 exposed I/O connectors for external cabling, it enables seamless input/output communication. Additional components include 14 stab-on connectors, six resistor networks, and 30 bottom-side components from L1 to L30. Protected during shipping with anti-static materials, it lacks extensive manual documentation, but its part number reveals details like domestic manufacture, "BPVC" functional role, and Group 1 Mark VI classification.

• Backplane Connectivity: 21 rear backplane connectors and 39 I/O connectors enable robust data transfer between rack-mounted boards.

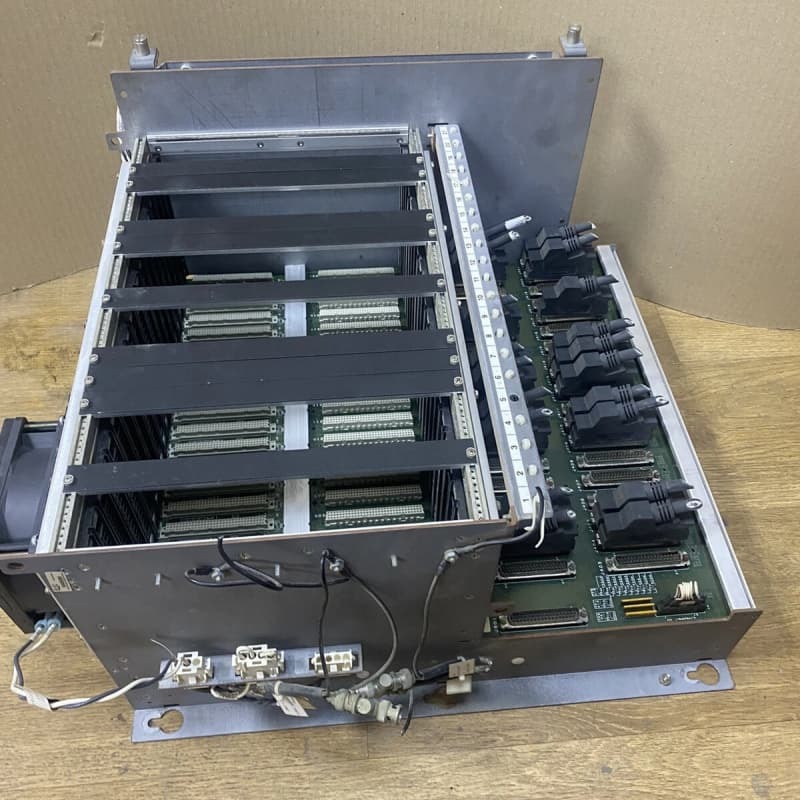

• Rack Integration: Designed for secure rack placement, with rear connectors supported by rack walls and exposed I/O for easy cabling access.
• Durable Design: Includes resistor networks and stab-on connectors, built to withstand industrial turbine environments.
• Mark VI Compatibility: Part of the advanced Speedtronic series, supporting gas, steam, and wind turbine control systems.

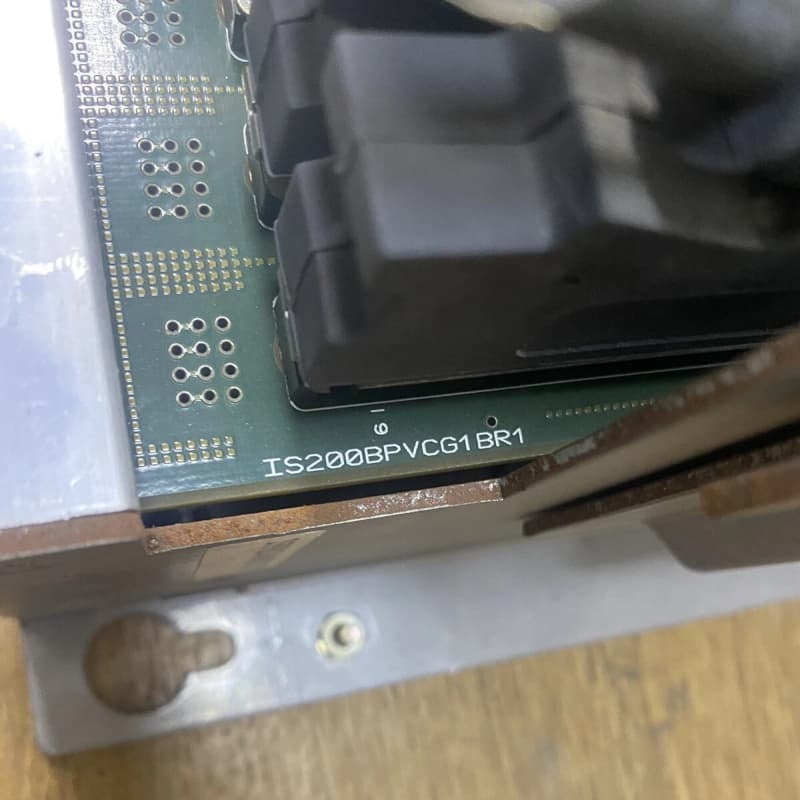

• Part Number Insights: Encodes details like domestic manufacture, "BPVC" function, Group 1 classification, and revision history for easy identification.

The GE IS200BPVCG1BR1 Backplane ASM Interface Board is an essential component in the sophisticated domain of turbine control systems. As a part of the GE Turbine Control Unit series, this product exhibits a robust build and advanced technological features that make it an ideal choice for various application occasions and scenarios.
