GE IS215VPROH2BC Turbine Protection Board Mark V Series
| Place of Origin | USA |
|---|---|
| Hàng hiệu | GE |
| Chứng nhận | COO |
| Model Number | IS215VPROH2BC |
| Minimum Order Quantity | 1 |
| Giá bán | $3000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Name | GE IS215VPROH2BC Turbine Protection Board | Product ID | IS215VPROH2BC |
|---|---|---|---|
| Series | Mark V | Product Net Width | 100mm |
| Product Net Height | 200mm | Product Net Weight | 2kg |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Làm nổi bật | GE Mark V turbine protection board,IS215VPROH2BC control board,GE turbine control board with warranty |
||
Mô tả sản phẩm
GE IS215VPROH2BC Turbine Protection Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215VPROH2BC Turbine Protection Board |
| Product ID | IS215VPROH2BC |
| Series | Mark V |
| Dimensions (W x H x D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
| Warranty | 1 Year |
Product Overview
The GE IS215VPROH2BC is a Turbine Protection Board in the Mark VI Speedtronic control system, critical for gas, steam, and wind turbine safety. As part of a triple-redundant setup, it works with TPRO and TREG terminal boards to deliver independent emergency overspeed protection and emergency stop functions, controlling trip solenoids to halt turbines during critical faults.
This board features a front faceplate with diagnostic LEDs, power/communication ports, and rear stacked boards with components like capacitors, integrated circuits, and heat sinks. It supports nine thermocouples for exhaust over-temperature monitoring and three analog inputs, with isolated backplanes ensuring redundancy. Compatible with simplex/TMR systems, it allows hot-swap replacement without disrupting operation.
Key Features
- Triple Redundancy: Part of a three-board system for fault tolerance, ensuring protection even if one board fails.
- Emergency Protection: Triggers overspeed and emergency stops via TREG/TRPG boards, controlling up to three trip solenoids.
- Diagnostic Tools: Front LEDs indicate status; supports thermocouple and analog inputs for comprehensive monitoring.
- Hot-Swap Capability: Enables replacement during turbine operation, maintaining system reliability.
- Isolated Design: Rear backplanes prevent cross-talk between redundant sections, enhancing safety integrity.

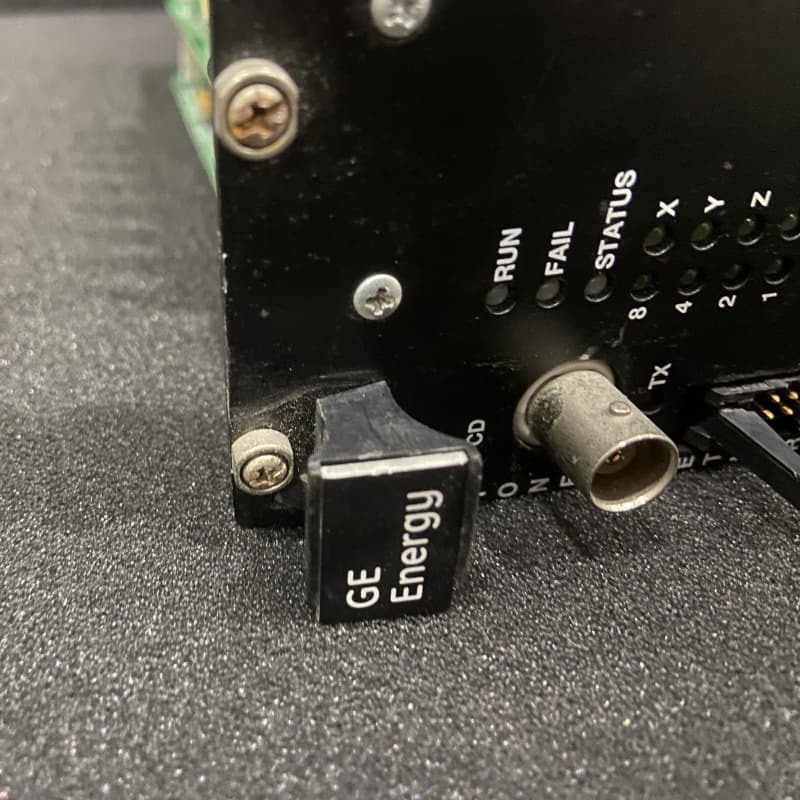

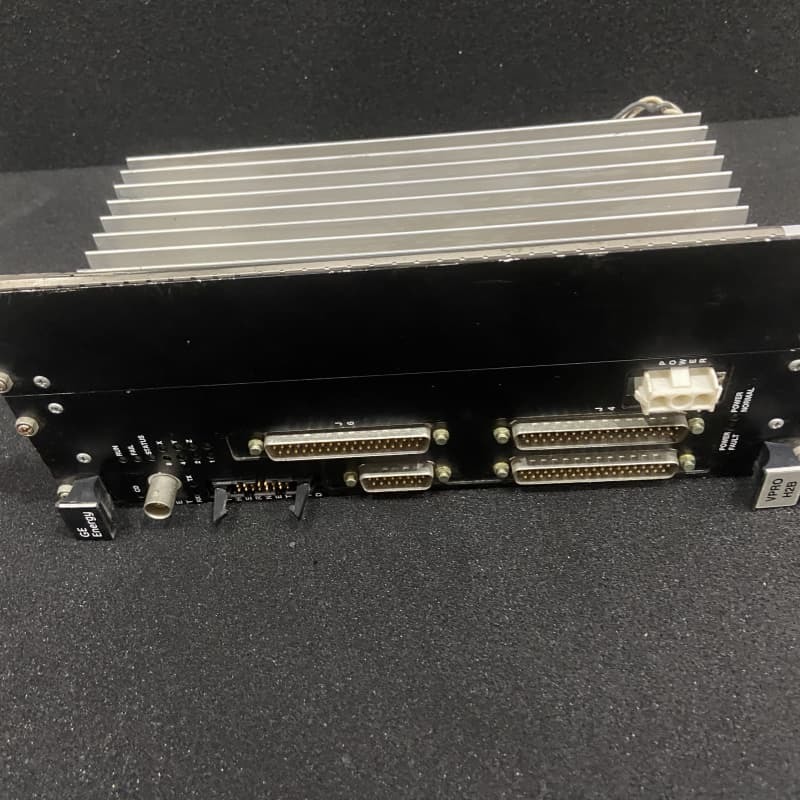

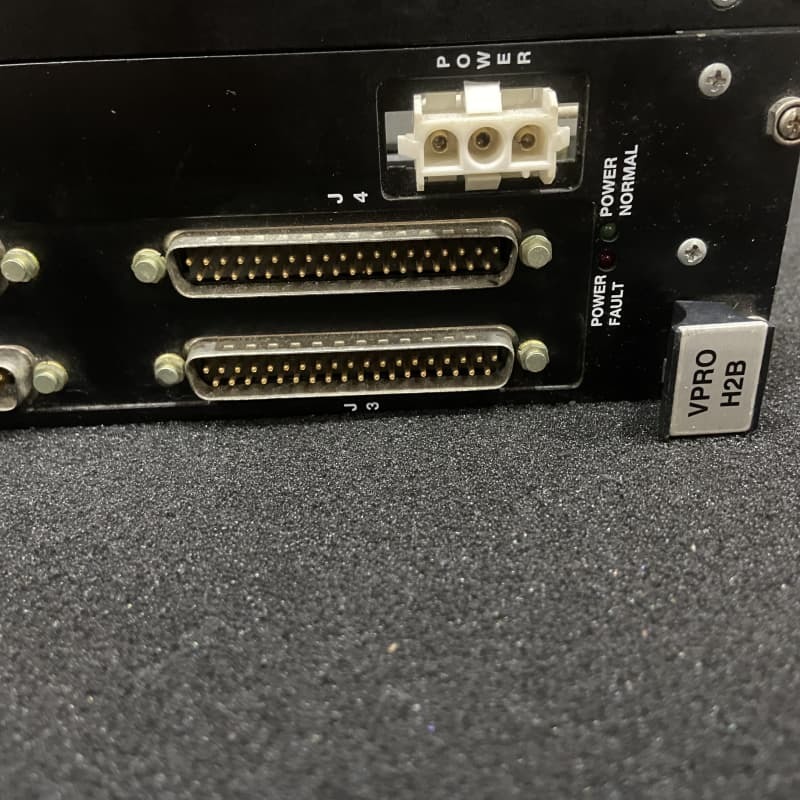

Product Images
