GE IS210AEPSG1A AE Power Supply Board for Mark VIe Turbine Control

The GE IS210AEPSG1A is a Power Supply Board designed for the Mark VIe turbine control system, part of GE Industrial Systems' legacy Speedtronic line for gas/steam turbine management. As a modified "A"-revision daughter product of the IS210AEPSG1, it monitors turbine health—including vibration, shaft voltage, flame detection, and temperature—via general and application-specific I/Os. Integral to the Mark VIe's Ethernet-enabled architecture, it ensures stable power and system oversight in critical turbine operations.

• Core Function: Powers and monitors turbine systems, detecting issues like vibration and overheating using dedicated and general-purpose I/Os to support reliable turbine operation.

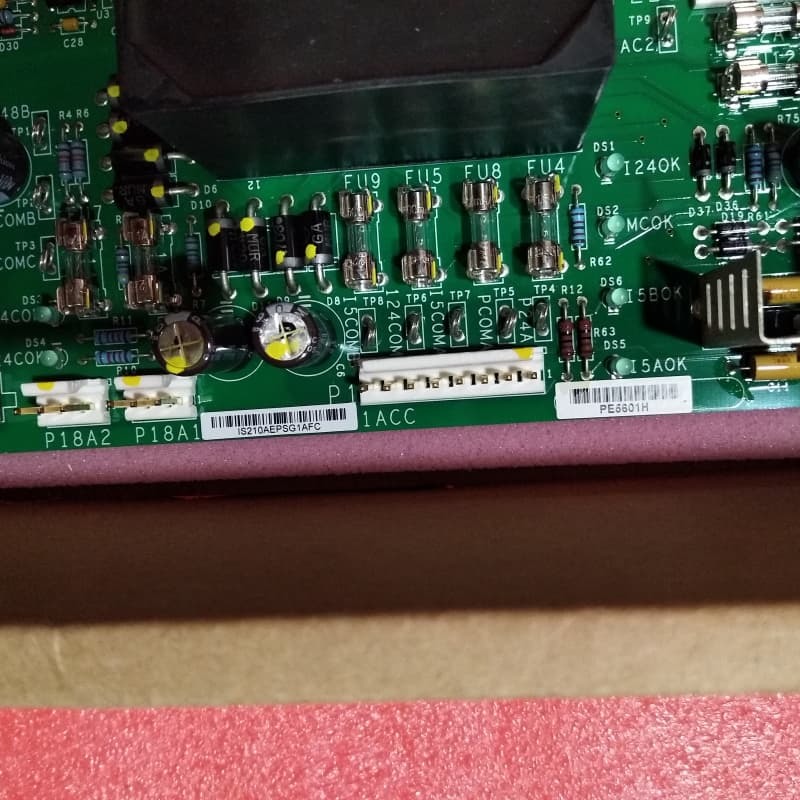

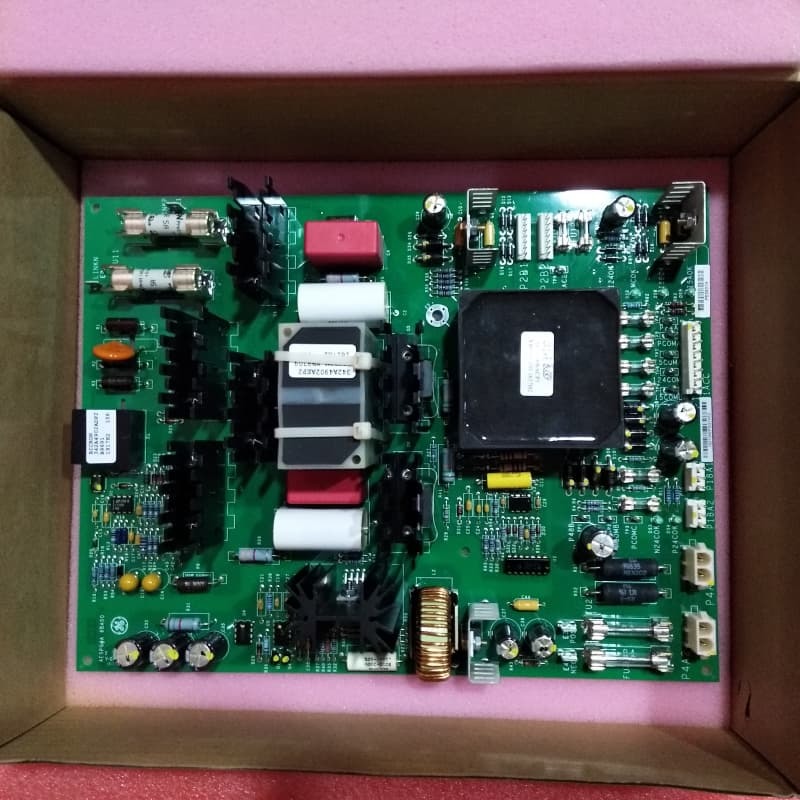

• Hardware Design: A compact, component-dense rectangular board with insulated factory-drilled holes to prevent voltage damage. Equipped with transformers, an inductor coil, and 11 heat sinks for thermal management.
• Protection Components: Includes four pairs of fuses, metal film resistors, metal-oxide varistors, ceramic/polyester capacitors, and high-voltage electrolytic capacitors for surge and voltage protection.
• Connectivity & Diagnostics: Features stab-on/plug/header connectors, integrated circuits, TP test points, transistors, and LED indicators for fault detection and diagnostics.
• Coating & Revision: Uses a thick, durable normal-style PCB coating. Identified as an "A"-rated functional revision via its part number, denoting improved performance over the base model.
